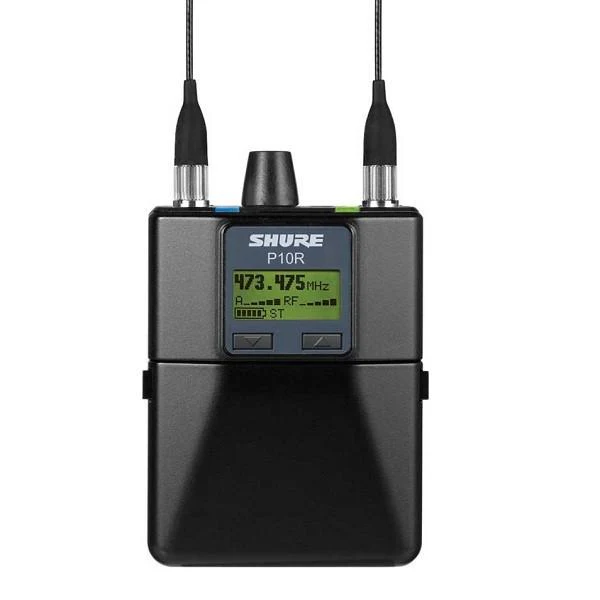

Shure P10R Wireless Bodypack Receiver
The P10R Wireless Bodypack Receiver from Shure is a professional-quality wireless stereo bodypack receiver designed to be used as part of a PSM1000 wireless personal monitoring system. The receiver has a slim and compact extruded aluminum construction for easy placement on a performer and lasting durability. The receiver has an enhanced digital stereo encoder to provide excellent audio clarity and detail. RF scan and automatic gain features provide excellent RF stability and channel availability, and prevent dropout due to RF overload. Output power is a strong 100mW to provide a robust link in any environment.
The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable high frequency EQ boost is also provided. A patent-pending CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P10R operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P10R has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound isolating earphones, which are designed specifically for use with PSM systems.
Shure P9T Specifications:
The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable high frequency EQ boost is also provided. A patent-pending CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P10R operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P10R has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound isolating earphones, which are designed specifically for use with PSM systems.
Shure P9T Specifications:
- Modulation: FM, MPX Stereo
- Operating Range: 300' (90 m)
- Frequencies: J8: 554-626MHz
- Frequency Response: 38Hz - 15kHz
- Signal to Noise Ratio: 90dB
- RF Sensitivity: 2.2µV
- Filter: -3dB @ 30.5MHz, From Center Frequency of Each Band
- Gain Control: 31dB
- Image Rejection: > 90dB
- Adjacent Channel Crosstalk: > 70dB
- Blocking: > 80dB
- Squelch: 22dB SINAD
- Intermodulation Distortion: > 70dB
- Load Impedance: 9.5 Ohms
- Output Power: 100mW per Output
- Gain Boost: +2dB, +4dB @ 10kHz Selectable
- Limiter: 3-9, Selectable
- Connector: 1 x 3.5mm Headphone Jack, 2 x Antenna Connectors
- Battery Type/Life: 2 x AA, Approx 4-6 Hours, 1 x SB900 Li-ion Rechargeable Pack, Approx 10 Hours
- Dimensions (HxWxD): 3.9 x 2.6 x 0.9" (99 x 66 x 23mm)
Made in China
$219.78
Original: $732.60
-70%Shure P10R Wireless Bodypack Receiver—
$732.60
$219.78Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The P10R Wireless Bodypack Receiver from Shure is a professional-quality wireless stereo bodypack receiver designed to be used as part of a PSM1000 wireless personal monitoring system. The receiver has a slim and compact extruded aluminum construction for easy placement on a performer and lasting durability. The receiver has an enhanced digital stereo encoder to provide excellent audio clarity and detail. RF scan and automatic gain features provide excellent RF stability and channel availability, and prevent dropout due to RF overload. Output power is a strong 100mW to provide a robust link in any environment.
The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable high frequency EQ boost is also provided. A patent-pending CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P10R operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P10R has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound isolating earphones, which are designed specifically for use with PSM systems.
Shure P9T Specifications:
The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable high frequency EQ boost is also provided. A patent-pending CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P10R operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P10R has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound isolating earphones, which are designed specifically for use with PSM systems.
Shure P9T Specifications:
- Modulation: FM, MPX Stereo
- Operating Range: 300' (90 m)
- Frequencies: J8: 554-626MHz
- Frequency Response: 38Hz - 15kHz
- Signal to Noise Ratio: 90dB
- RF Sensitivity: 2.2µV
- Filter: -3dB @ 30.5MHz, From Center Frequency of Each Band
- Gain Control: 31dB
- Image Rejection: > 90dB
- Adjacent Channel Crosstalk: > 70dB
- Blocking: > 80dB
- Squelch: 22dB SINAD
- Intermodulation Distortion: > 70dB
- Load Impedance: 9.5 Ohms
- Output Power: 100mW per Output
- Gain Boost: +2dB, +4dB @ 10kHz Selectable
- Limiter: 3-9, Selectable
- Connector: 1 x 3.5mm Headphone Jack, 2 x Antenna Connectors
- Battery Type/Life: 2 x AA, Approx 4-6 Hours, 1 x SB900 Li-ion Rechargeable Pack, Approx 10 Hours
- Dimensions (HxWxD): 3.9 x 2.6 x 0.9" (99 x 66 x 23mm)
Made in China
