Shure Motiv MVi Digital USB Audio Interface Overview:

Delivering the convenience of a professional sound studio on the go, the MOTIV MVi Portable Digital Audio Interface connects any standard XLR microphone or ¼" plug guitar, bass, or keyboard to any Mac, PC, iPhone, iPod, iPad or Android device for seamless, high-quality audio capture. Equipped with 5 built-in DSP preset modes (Speech, Singing, Flat, Acoustic Instrument, Loud), the MVi includes a unique onboard touch panel control for quick access to gain, mute and headphone volume adjustments in real time. A portable, low-profile footprint with all-metal construction that is designed, built and rigorously tested by Shure to ensure reliable performance in any environment.

Features:
\n

\n
• Apple MFi (Made for iPhone/iPod/iPad) Certified for direct connection to any iOS device without the need for any additional
\n
• adapters or connection kits
\n
• Discrete JFET Class A buffered instrument preamplifier input for exceptional tone and clarity
\n
• Supplies 12-48v phantom power (12v–iOS/48v–USB)
\n
• 5 DSP Preset Modes (Speech, Singing, Flat, Acoustic Instrument, Loud)
\n
• Automatically adjusts EQ, Compression and Limiting for optimal results
\n

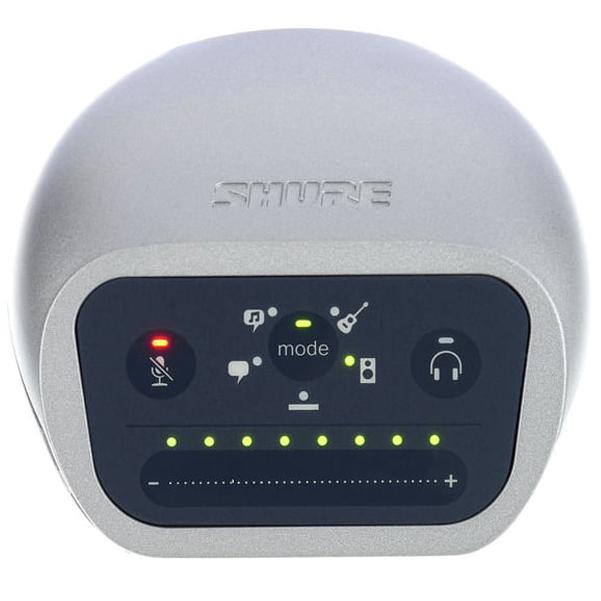

• Front panel touch controls for mode selection, headphone volume, microphone gain, and mute
\n
• Built-in headphone output for real-time monitoring
\n
• Combo XLR or ¼" jack connects XLR microphone or ¼" plug guitar/bass/keyboard
\n

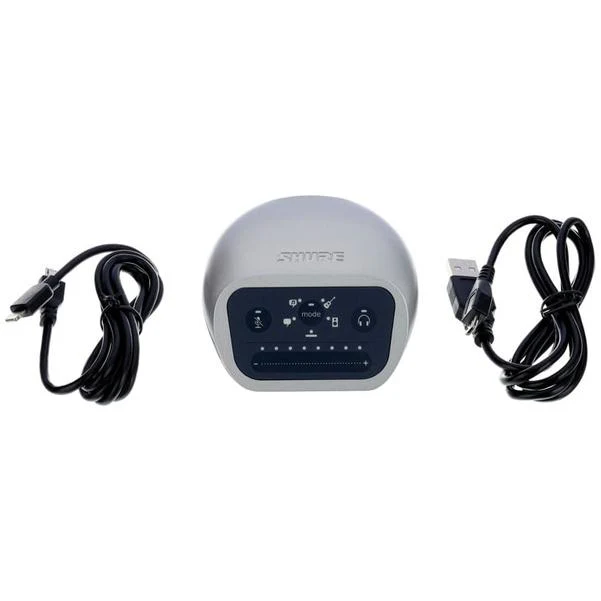

• Includes one (1) Micro-B-to-USB cable and one (1) Micro-B-to-Lightning cable
\n
• All-metal construction designed, built and rigorously tested by Shure
\n

\nSpecifications:
\n

\n
• MFi Certified: Yes
\n
• DSP Modes (Presets): Speech/Singing/Acoustic/Loud/Flat
\n
• Input: Combination XLR and ¼" (6.35 mm) TRS
• Input Impedance: 3-pin XLR: >2 kΩ, ¼" TRS: >1 MΩ
\n
• Bit Depth: 16-bit/24-bit
\n
• Sampling Rate: 44.1/48 kHz
\n
• Frequency Response at minimum gain, flat mode: 20 Hz to 20,000 Hz
\n
• Adjustable Gain Range: 3-pin XLR: 0 to +36 dB, ¼" TRS: +9 dB
• Maximum Input Level: 3-pin XLR: 0 dBV, ¼" TRS: +9 dBV
\n
• Headphone Output: 3.5 mm (1/8")
• Power Requirements: Powered through USB or Lightning connector
• Phantom Power: USB: +48 VDC, iOS: +12 VDC
• Input Mute: Yes
• Housing: All-metal construction
• Net Weight: 310.0 g (10.93 oz.)
• Dimensions: 42 × 84 × 72 mm H × W × D
• Cable: Includes one (1) Micro-B-to-USB cable and one (1) Micro-B-to-lightning cable

System Requirements:

• Windows: Windows 7, Windows 8; 64 MB minimum RAM; USB 2.0
• Macintosh: OSX Lion 10.7, OSX Mountain Lion 10.8, OSX Mavericks 10.9, OSX Yosemite 10.10; 64 MB minimum RAM; USB 2.0
• iOS 7.0 and higher: iPhone 5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus; iPod touch 5th generation; iPad 4th generation, iPad Air, iPad
• Air 2; iPad Mini 1st generation, iPad Mini 2nd generation, iPad Mini 3rd Generation
• MOTIV Digital Microphones and Recording Solutions are compatible with Android devices that support USB Audio Class 2.0 and Micro-B OTG (On-The-Go) connectivity. Not all Android devices are compatible.

Made in China
