Shure GLXD14R 85-Z2 Wireless Lavalier System Band Z2 (2.4 GHz) Overview:

The Shure GLXD14R/85 Lavalier Wireless System is part of the GLX-D Advanced wireless systems family.

GLXD14R/85 provides intelligent rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The premium WL185 lavalier microphone offers discreet placement for presentations and other spoken word applications. For use with GLX-D® Advanced Frequency Managers (UA846Z2).

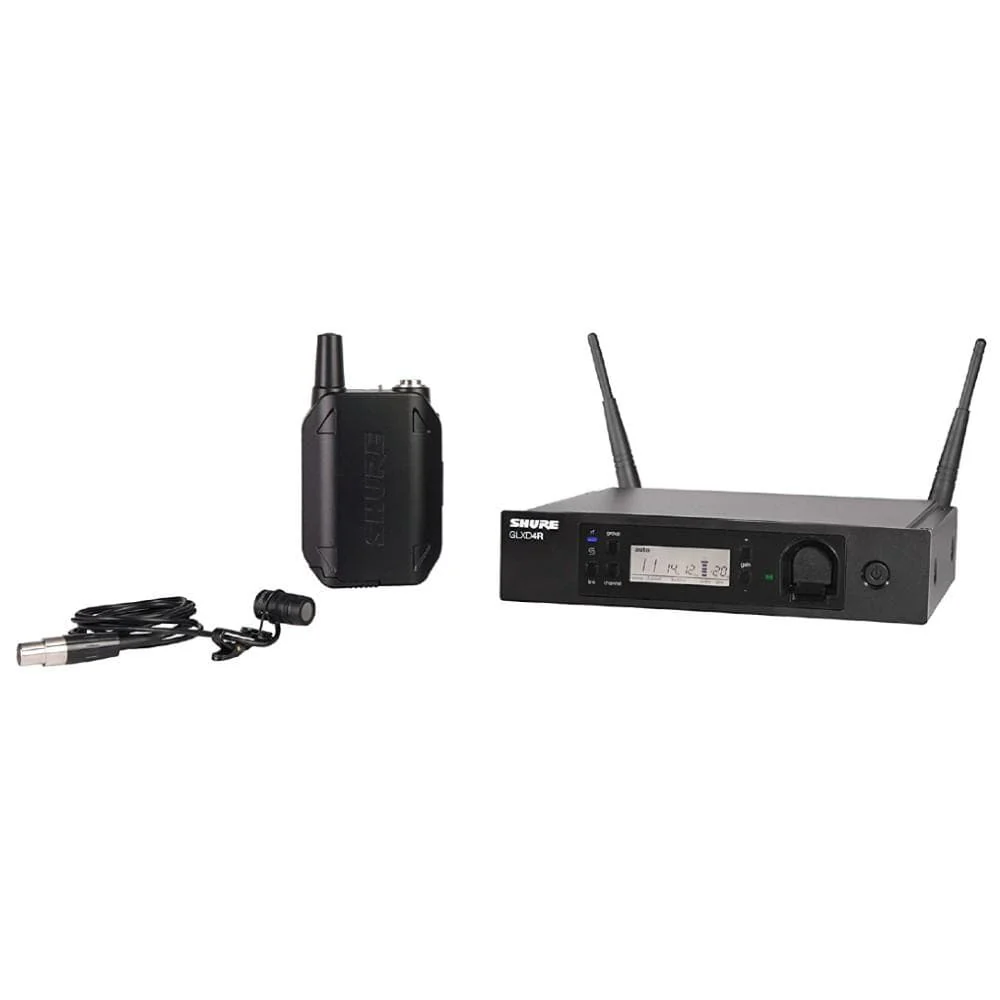

Includes GLXD4R rack mount receiver, GLXD1 bodypack transmitter, WL185 cardioid condenser microphone with windscreen and collar clip, SB902 rechargeable lithium-ion battery, USB charge cable, 2 detachable antennas, rack mount hardware, and user guide.

GLXD4R
Rack mountable receiver with removable antennas for exceptional audio and rock-solid performance in multi-system installations for house of worship, education and live music applications.

Use GLX-D Advanced rack mount wireless systems for improved RF performance and seamless frequency management. With detachable antennas and rack hardware included, GLXD4R receivers quickly integrate GLX-D Frequency Managers and remote antenna accessories for rock-solid multi-system installations.

• Rock-solid RF Performance from patented data communication
• Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries with two-color charge indicator LED - Green: Charged/Flashing Green: 90% charged/Red: Charging
• Detachable antennas for remote mounting
• Remote adjustable transmitter gain control
• Hi-res LCD screen status display
• Real-time battery run-time displayed in hours and minutes (accurate within ±15 minutes)
• XLR and ¼” output connectors
• Rugged metal chassis design
• Includes rack mount hardware

GLXD1
GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. For use with GLX-D Digital Wireless Systems and GLX-D Advanced Digital Wireless Systems with firmware update 2.2.5 or later.

GLXD1 offers up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries.

• Automatically links with GLXD4 and GLXD4R wireless receivers for seamless frequency changing
• Sophisticated design with rugged metal construction
• Easily accessible on / off switch
• Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables
• WL185 LAVALIER CONDENSER MICROPHONE
• Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise, the WL185 is an cardioid lavalier microphone with a 130 degree pickup angle. It has a 1.2 meter (4 ft) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility. Use of windscreen highly recommended.

Feature CommShield Technology, which guards against interference from cellular RF devices and digital bodypack transmitters.

SB902
Lithium-ion battery serves either as a replacement or a spare battery to charge while using the system.

PRODUCT SPECIFICATIONS:

• TUBE OR SOLID STATE: Solid State
• TRANSDUCER TYPE: Condenser
• POLAR PATTERN: Cardioid
• NUMBER OF MICROPHONES: Single Microphone
• IMPEDANCE: 1800 Ohms
• FREQUENCY RANGE: 50 Hz - 17 kHz
• SENSITIVITY: -45.5 dBV/Pa (5.3 mV)



Made in China
