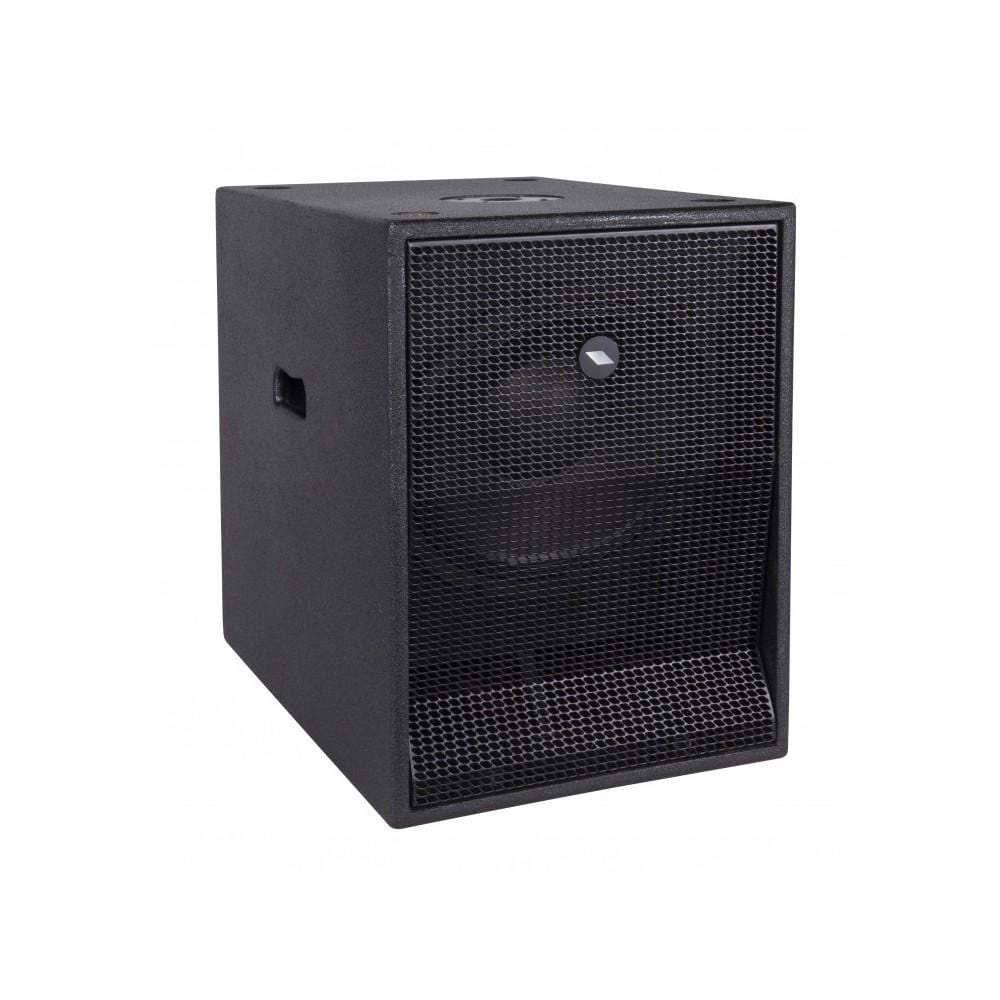

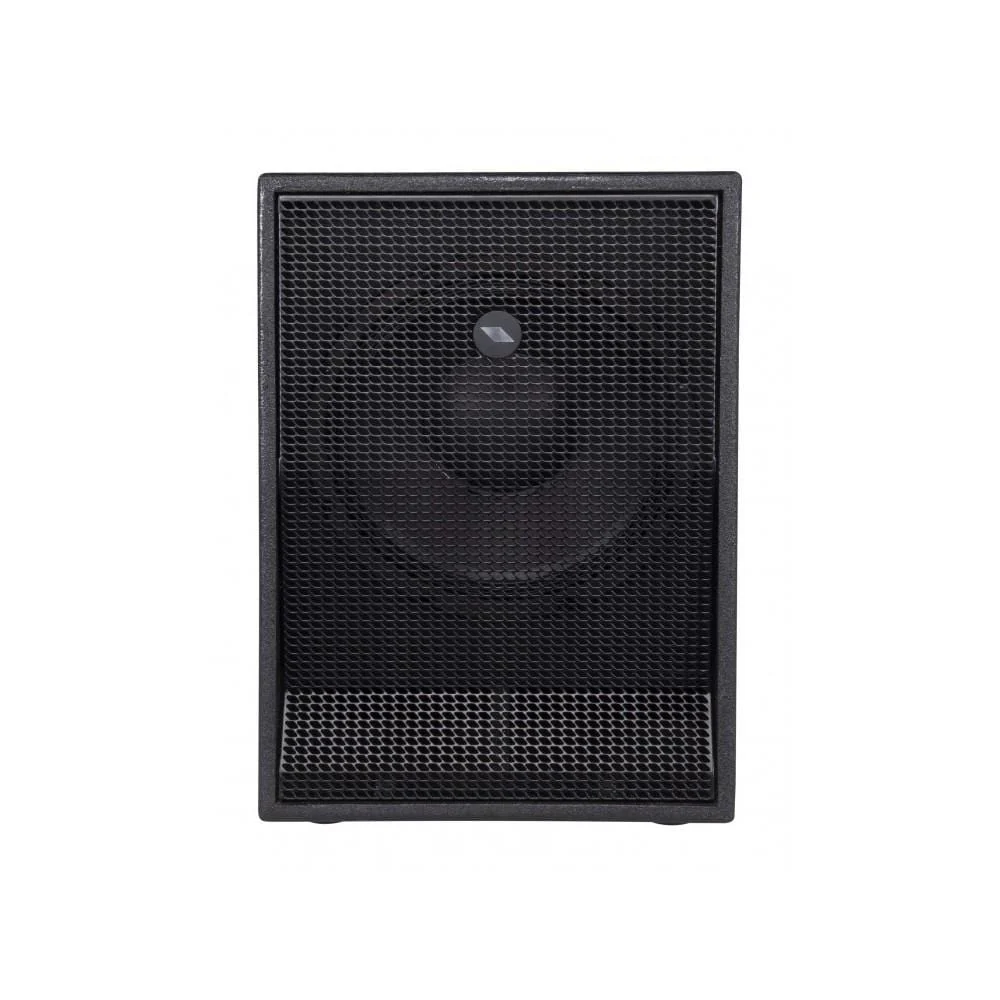

Proel S12A Hybrid Band Pass Active Subwoofer Overview:

PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the four active S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can generate a massive amount of continuous power in a compact, lightweight and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch.
The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).

Features:

• Compact active HBP sub-woofer
• 12” woofer with 3” VC for a deep and extended response
• 1200 W peak power
• STEREO input, link and output
• SPL MAX 128 dB
• Frequency response 43 Hz - 160 Hz

Specifications:

• System type: Hybrid Band Pass subwoofer
• Loudspeaker: 12" woofer with 3" VC
• Amplifier Continuous Power: 600 W
• Frequency Response: 43 Hz - 160 Hz
• Max SPL: 127dB

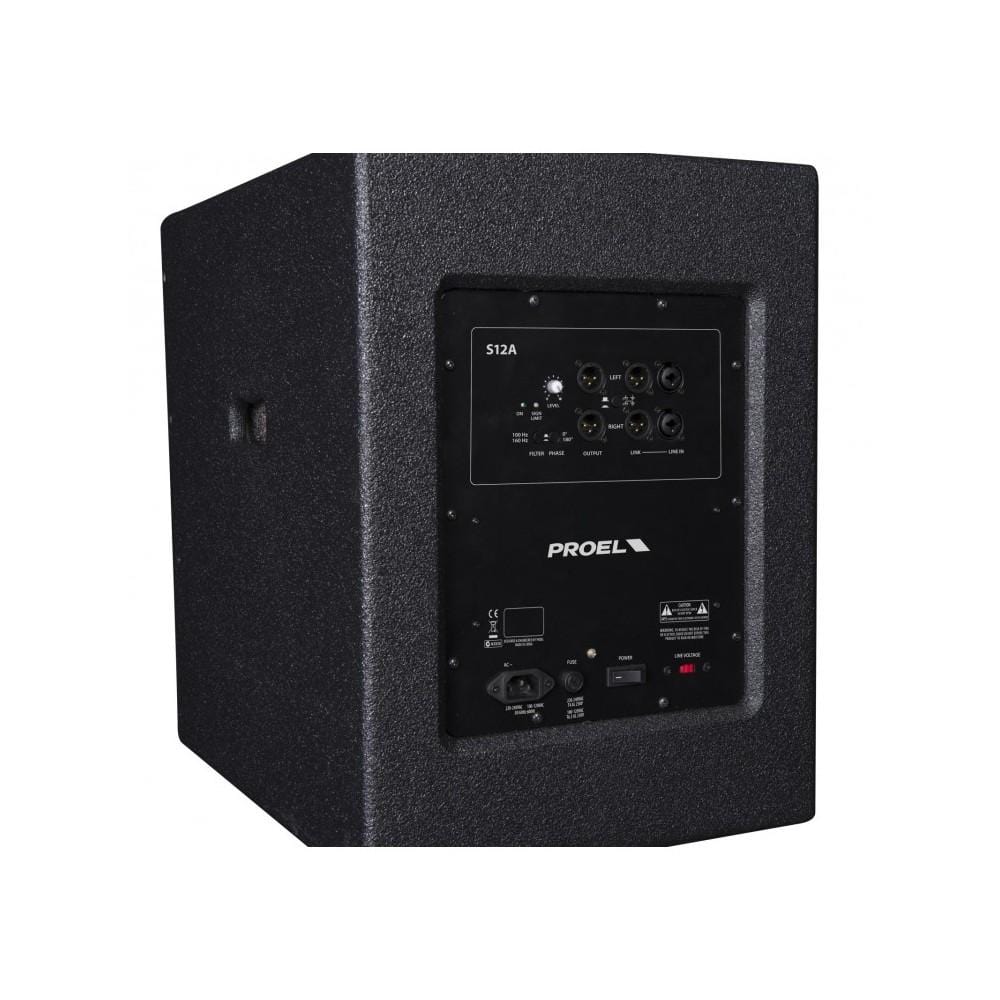

• Connectors:
• IN: 2 x NEUTRIK COMBO
• OUT: 2 x NEUTRIK XLR-M
• LINK: 2 x NEUTRIK XLR-M
• Controls:
• Volume, GND lift
• X-over Frequency, Phase
• Power Supply: 230 VAC or 120 VAC 50/60 Hz
• Weight: 19 kg (41.9 lb)
• Cabinet:
• 15/18 mm plywood
• Black anti-scratch paint
• 1.5 mm metal grille
• 2 handles
• 1 x pole socket
• Dimensions (W x H x D): 360x500x520 mm

Made in China
