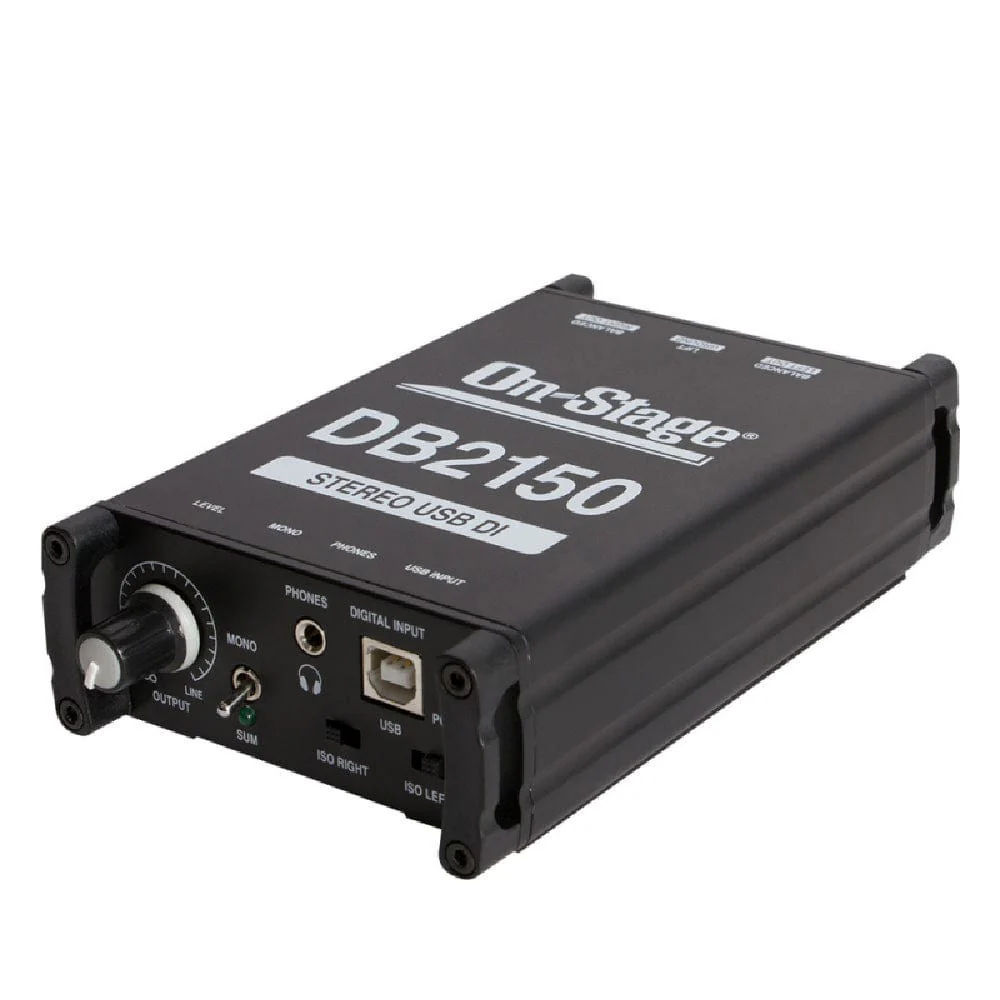

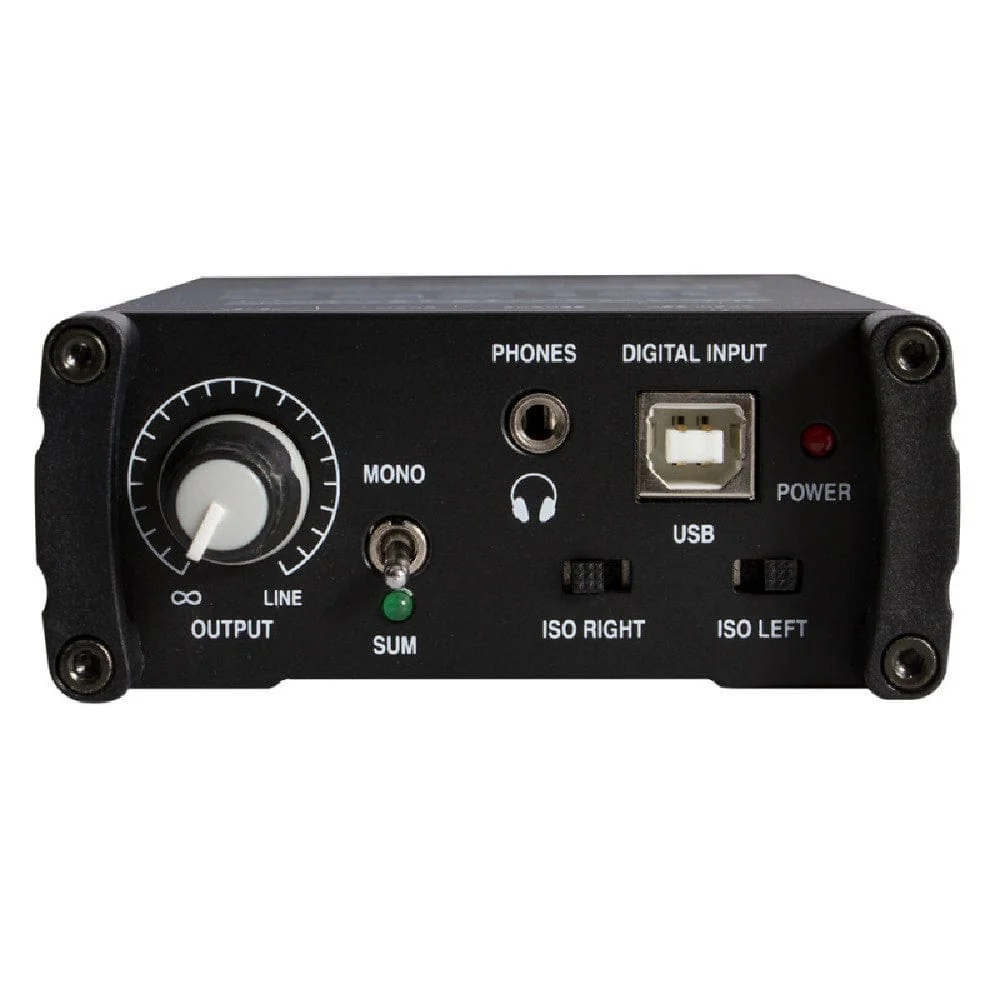

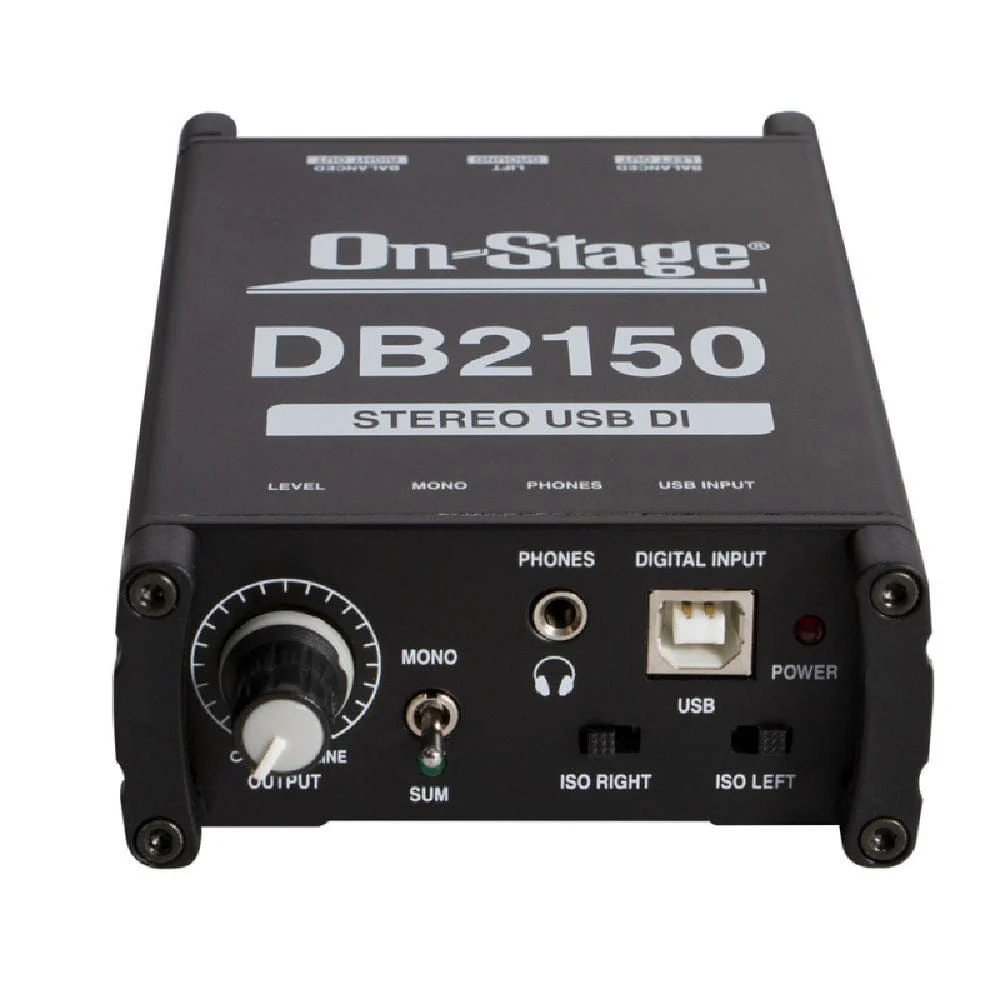

On-Stage DB2150 Passive USB DI Box Overview:

Our DB2150 Stereo USB DI Box converts digital audio to discrete stereo analog XLR signals ready to send via long cable runs to a mixer or PA system. For convenient plug-and-play use with laptops when connected via USB Windows and Mac computer operating systems automatically recognize this box as an available soundcard. Features include low-distortion passive circuitry monitoring via a 3.5 mm headphone output a ground-lift switch to eliminate ground-loop hum transformer isolation switches for defeating channel-specific ground-loop hum and a mono-sum switch to convert a stereo source to a mono output. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Features

• Connects via USB for compatibility with a wide range of computers
• Automatically configured by Windows and macOS for easy plug-and-play use
• Transformer isolation eliminates noise caused by ground loops

Specifications

• Application: Computers mp3 players projectors and DJ equipment
• Input: USB 2.0

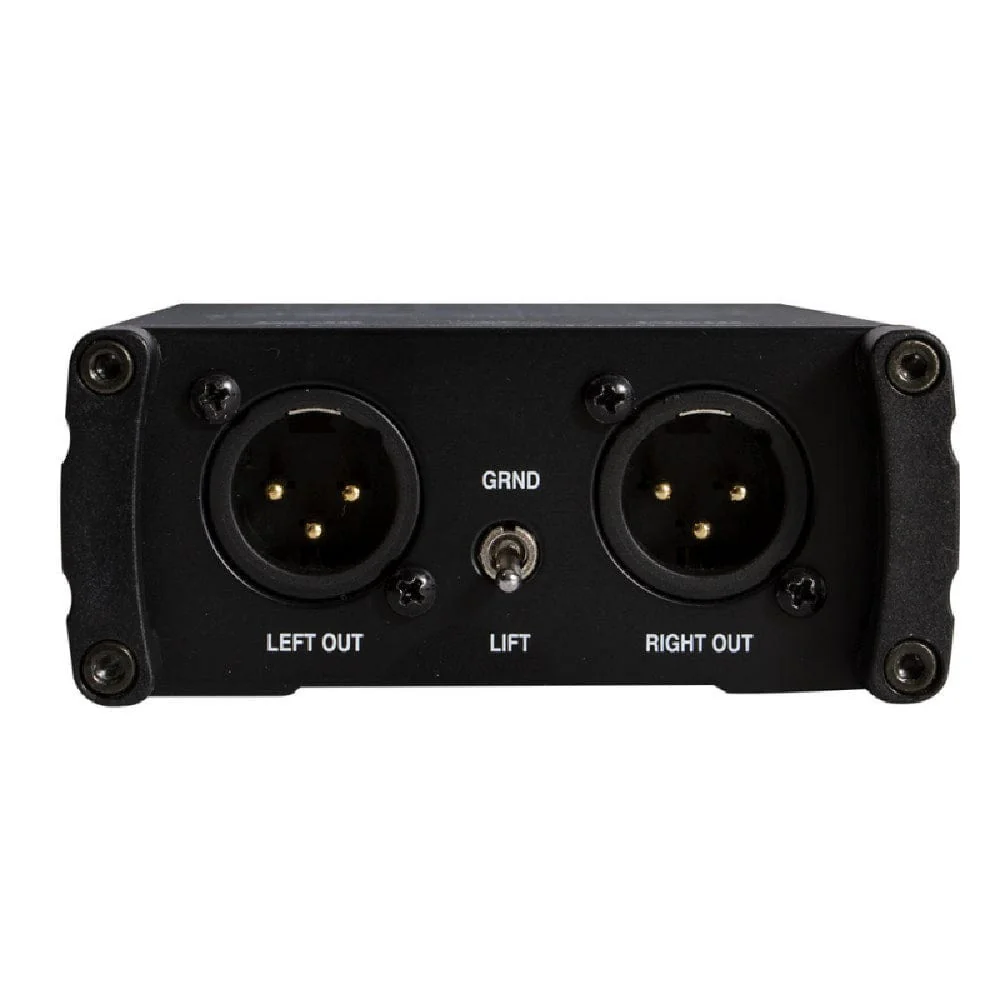

• Output: XLR (stereo) 3.5mm headphone
• Mono Sum: Yes
• Ground Lift: Yes
• Iso Switch: Yes
• Frequency Response: 10Hz - 20kHz
• Sample Rate: 96k
• Dynamic Range: 90dB
• Output Impedance: 200 Ohms
• Construction: Metal w/ nylon bumpers
• Dimensions: 5.75" x 3.5" x 1.5"
• Weight: 0.70 lbs.
