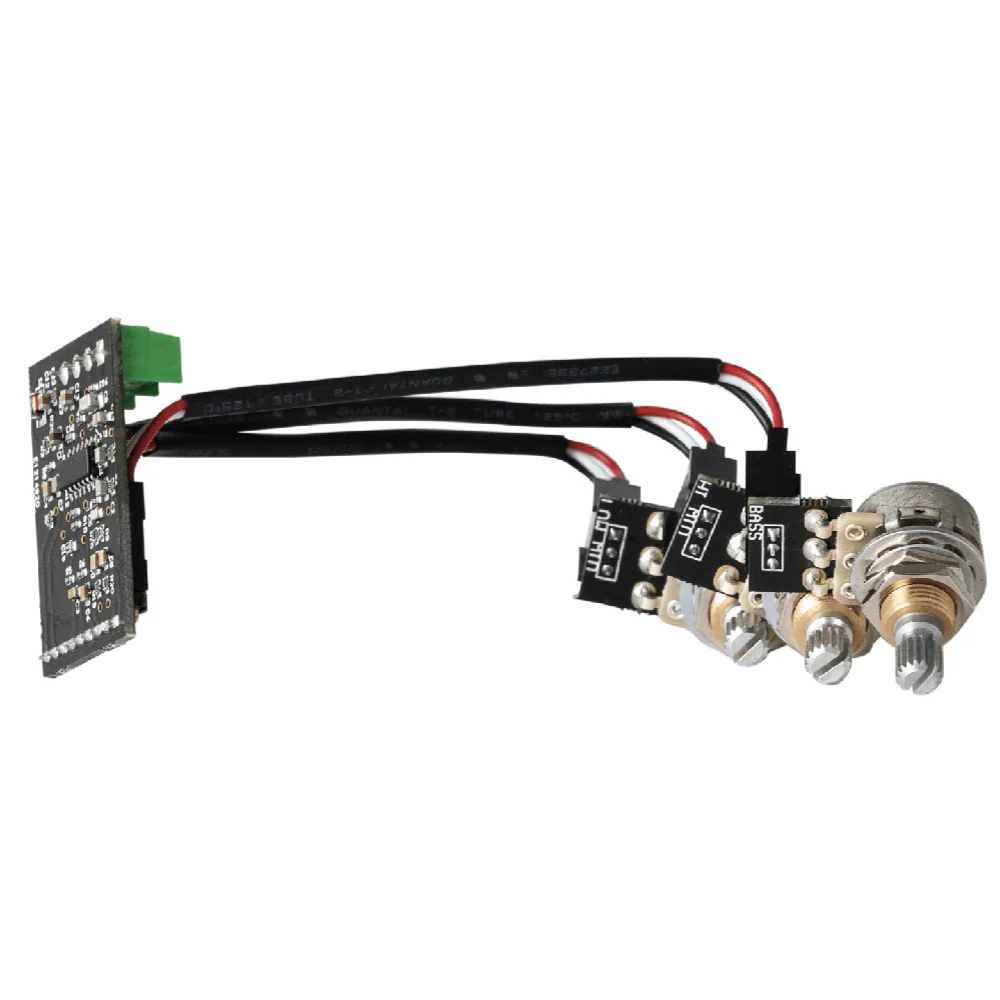

Darkglass Electronics Tone Capsule B2M2 Bass Pre Amp System
Darkglass Electronics Tone Capsule B2M2 Bass Pre Amp System Overview:
The Tone Capsule is a new, unusual take on onboard preamplifiers. It’s designed to respect your instrument’s natural character while expanding exponentially the tonal possibilities.
Control
- Bass: +-12dB @70Hz (potentiometer included).
- Mids: +-12dB @500Hz (potentiometer included).
- Hi Mids: +-12dB 2.8kHz (potentiometer included).
- Technical Specifications
- Input Impedance: 500k
- Output Impedance: 1k
- Current Consumption: ~2.4mA
- Input Impedance: 500k
- 9V-18V operation
- The Tone Capsule can function with either one or two batteries in series for 9V or 18V operation respectively (battery clips not included).
- Dimensions
- Width: 42 mm / 1,65″
- Length: 25 mm / 1″
- Height: 12,5 mm / 0,5″
- Cable length: ~10cm / 4″
- Pots: 50 KB
- Width: 42 mm / 1,65″
$56.81
Original: $189.38
-70%Darkglass Electronics Tone Capsule B2M2 Bass Pre Amp System—
$189.38
$56.81Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Darkglass Electronics Tone Capsule B2M2 Bass Pre Amp System Overview:
The Tone Capsule is a new, unusual take on onboard preamplifiers. It’s designed to respect your instrument’s natural character while expanding exponentially the tonal possibilities.
Control
- Bass: +-12dB @70Hz (potentiometer included).
- Mids: +-12dB @500Hz (potentiometer included).
- Hi Mids: +-12dB 2.8kHz (potentiometer included).
- Technical Specifications
- Input Impedance: 500k
- Output Impedance: 1k
- Current Consumption: ~2.4mA
- Input Impedance: 500k
- 9V-18V operation
- The Tone Capsule can function with either one or two batteries in series for 9V or 18V operation respectively (battery clips not included).
- Dimensions
- Width: 42 mm / 1,65″
- Length: 25 mm / 1″
- Height: 12,5 mm / 0,5″
- Cable length: ~10cm / 4″
- Pots: 50 KB
- Width: 42 mm / 1,65″
