Audio Technica MB/Dk4 Drum-Microphone Pack Overview:

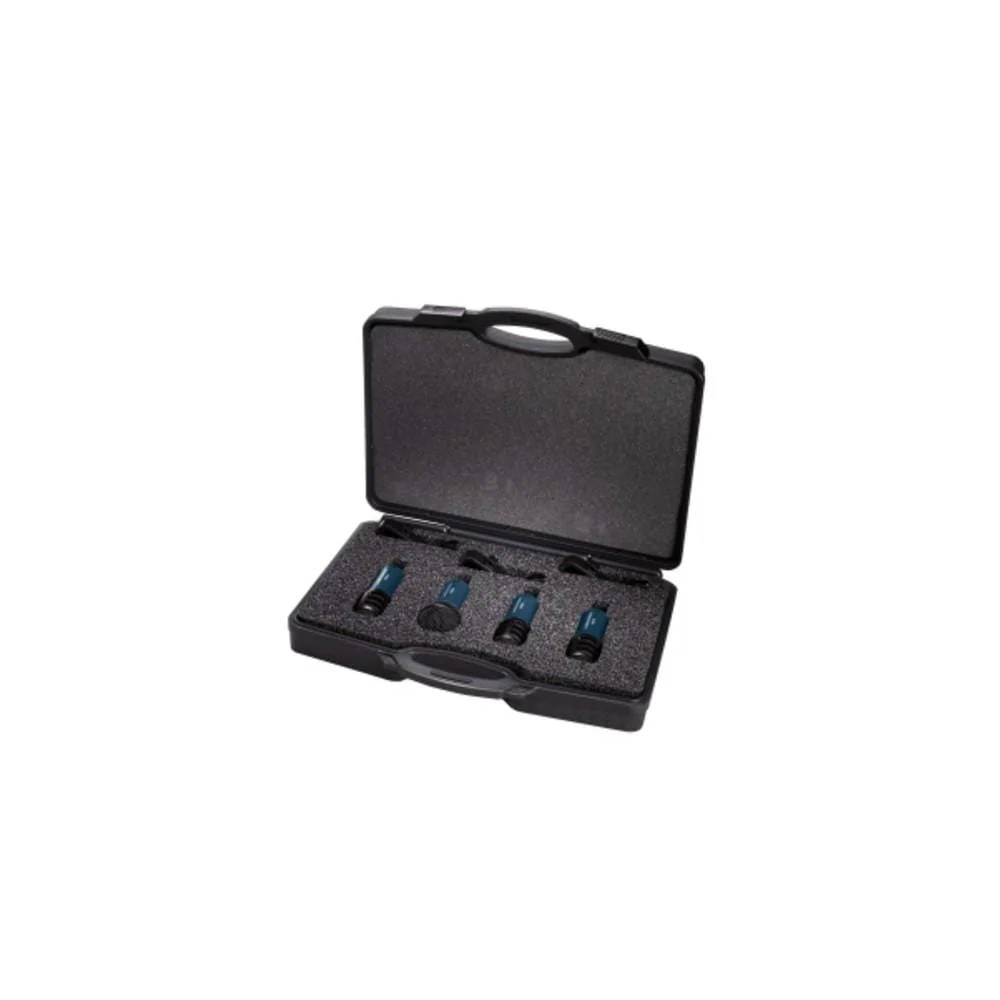

The MB/Dk4 Drum Pack includes a core selection of four microphones specifically engineered for drum applications. The three included MB 5k snare/tom microphones and one MB 6k kick microphone feature low-profile design for minimum visibility and versatile placement options around the drum kit. Also included in the package are three drum-rim microphone mounts and a durable carrying case.

Tailored for snare, rack toms and other highly dynamic instruments, the MB 5k snare/tom microphone offers a moving coil dynamic design with cardioid polar pattern, delivering superior off-axis rejection for maximum gain before feedback. With a frequency response of 100-12,000 Hz, the mic is engineered to handle fast transients and high SPLs.

The cardioid dynamic MB 6k kick microphone has a frequency response of 60-12,000 Hz. A natural at handling high SPLs, the MB 6k delivers superior results on bass drum as well as on floor and deep rack toms.

Features:

MB 5k Cardioid Dynamic Snare/Tom Microphone (3 included)

• Custom-engineered for use on snare and toms

• Road-ready all-metal construction

• Low-profile percussion-style design
• Built-in adjustable stand mount

MB 6k Cardioid Dynamic Kick Microphone (1 included)

• Custom-engineered for use on kick drum

• Rugged all-metal construction

• Low-profile percussion-style design
• Built-in adjustable stand mount

Specifications:

• ELEMENT: Dynamic
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE:
• MB 5k: 100-12,000 Hz
• MB 6k: 60-12,000 Hz
• OPEN CIRCUIT SENSITIVITY:
• MB 5k: -58 dB (1.2 mV) re 1V at 1 Pa
• MB 6k: -59 dB (1.1 mV) re 1V at 1 Pa
• IMPEDANCE: 500 ohms
• WEIGHT:
• MB 5k: 11.4 oz (324 g)
• MB 6k: 11.2 oz (317 g)
• DIMENSIONS:
• MB 5k: 4.46" (113.2 mm) long, 1.63" (41.5 mm) head diameter;
• MB 6k: 4.59" (116.5 mm) long, 2.11" (53.5 mm) head diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• ACCESSORIES FURNISHED: 3 MB 5k snare/tom mics; 1 MB 6k kick mic; 3 drum mic mounts; durable carrying case

Country of Origin: Taiwan
